Introduction: Why Repair RGC SCART Cables?
RGC SCART cables are widely used by retro gaming enthusiasts to connect classic consoles to CRT or modern TVs. These cables deliver excellent video and audio quality—but like any cable, they can wear out or get damaged over time. Instead of replacing them, repairing your RGC SCART cable is a budget-friendly and rewarding option.
In this beginner’s guide, we’ll walk you through everything you need to know about repairing RGC SCART cables safely—from the tools you’ll need to the common problems and step-by-step repair process.
What is an RGC SCART Cable?
Before diving into repairs, let’s understand what an RGC SCART cable is. RGC stands for Retro Gaming Cables, a popular brand known for high-quality custom SCART cables that connect retro gaming consoles to displays. These cables transmit RGB signals for vibrant colors and crisp images, which is essential for the best retro gaming experience.
Why Do SCART Cables Need Repair?
There are several reasons you might need to repair an RGC SCART cable:
- Loose connections
- Frayed wires or broken shielding
- No signal or distorted image
- Audio dropouts
- Connector pin damage
These problems are common but fixable—even for beginners.

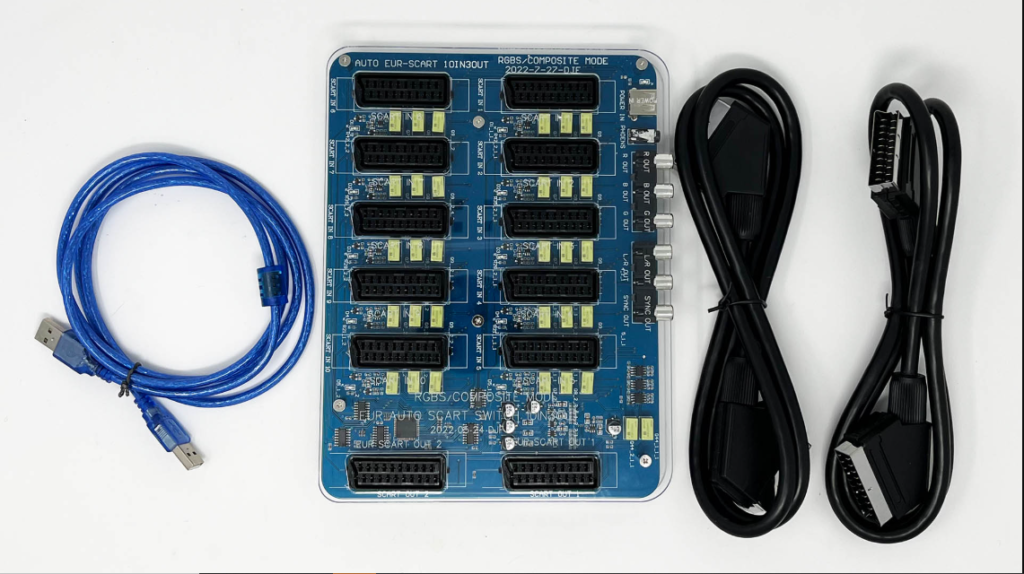

Tools You’ll Need for Repairing RGC SCART Cables
Before starting the repair process, gather the following tools:
- Soldering iron and solder
- Multimeter for testing continuity
- Small flathead screwdriver
- Wire stripper and cutter
- Heat shrink tubing or electrical tape
- Hot glue gun (optional for strain relief)
- Safety gloves and goggles
Safety Tips Before You Start
Repairing cables involves working with electrical components. Here are a few important safety tips:
- Always unplug the cable from the power source and console before repairing.
- Work in a well-ventilated space.
- Use safety gear to avoid burns from the soldering iron.
- Double-check wiring diagrams before reconnecting any wires.
Step-by-Step Guide to Repairing RGC SCART Cables
Step 1: Identify the Problem
Use a multimeter to test the continuity of each pin on both ends of the cable. Identify if there’s a broken wire or a short circuit. If your image is flickering or missing colors, the RGB pins may be damaged or disconnected.
Step 2: Disassemble the SCART Connector
Use a small flathead screwdriver to open the SCART connector housing. Carefully expose the internal wiring and note which wire connects to which pin. It’s a good idea to take a photo for reference.
Step 3: Trim and Strip the Wires
If the wires are frayed or broken, cut off the damaged portion. Strip the insulation carefully—around 5mm should be enough—so you can resolder them to the correct pins.
Step 4: Solder the Wires Back
Using your soldering iron, solder each stripped wire back to its corresponding pin. Be precise and avoid cold solder joints (dull or cracked solder). A shiny, firm solder point is ideal.
Step 5: Test the Cable
Once everything is soldered back, use your multimeter again to test the continuity of each pin. Plug the cable into your console and TV to check if the audio and video signals are back to normal.
Step 6: Secure and Reassemble
If everything works, use hot glue or heat shrink tubing to secure the connections and protect the wires. Close the SCART housing and tighten any screws.
Common Problems and How to Fix Them
| Problem | Cause | Solution |
|---|---|---|
| No Video Signal | Broken RGB lines or sync pin | Resolder wires or replace connector |
| Buzzing Sound | Poor ground connection | Check ground wires and resolder |
| Distorted Colors | Miswired RGB signals | Cross-check pin layout and resolder |
| Loose Cable Fit | Worn-out connector | Replace SCART plug |
| Image Flickering | Weak sync signal or shield issues | Add capacitor/resistor or improve shielding |

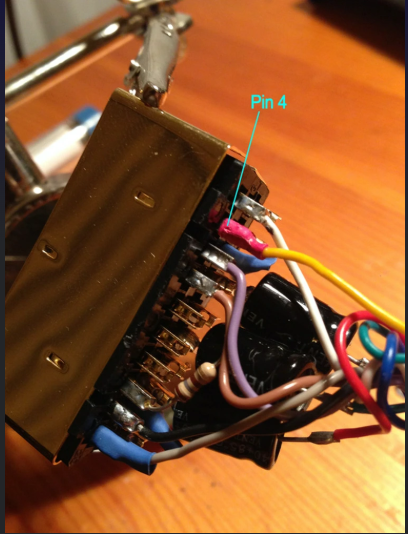

RGC SCART Cable Pinout (For Reference)
Here’s a simplified pinout for RGB SCART cables (not for composite or S-video versions):
- Pin 15 – Red video
- Pin 11 – Green video
- Pin 7 – Blue video
- Pin 20 – Sync (composite or csync)
- Pin 16 – RGB switching
- Pin 4 – Audio ground
- Pin 2 & 6 – Audio right & left
- Pin 21 (shield) – Ground
Always refer to the RGC website or your console-specific SCART wiring diagram before soldering.
Tips for Maintaining SCART Cables
- Avoid tight bends or twists in the cable.
- Store cables in a cool, dry place.
- Use strain relief to protect solder joints.
- Clean connectors with isopropyl alcohol periodically.
- Avoid plugging/unplugging forcefully.
Can You Replace the Whole Connector?
Yes. If your SCART plug is damaged beyond repair, you can purchase a replacement SCART connector and solder your cable wires into the new one. Be sure to follow the pinout correctly and double-check connections before reassembling.
Is It Cheaper to Repair or Replace?
Repairing your RGC SCART cable is usually more cost-effective, especially if you already have basic tools. A new cable from Retro Gaming Cables can cost between $30 and $80 depending on the system, while a DIY fix may only cost you a few dollars.
About Repairing RGC SCART Cables
Q1. Is repairing SCART cables safe for beginners?
Yes, as long as you follow safety precautions and take your time, repairing SCART cables is a manageable project for beginners.
Q2. How long does it take to repair a SCART cable?
On average, it takes about 30 minutes to 1 hour, depending on the damage.
Q3. Do I need special tools to repair SCART cables?
Basic tools like a soldering iron, multimeter, and wire cutters are enough. You don’t need expensive equipment.
Q4. Can a repaired SCART cable be as good as new?
Absolutely. If repaired properly, performance should be nearly identical to a new cable.
Q5. What if I mix up the RGB wires?
You may get incorrect colors or no signal. Use a wiring diagram and multimeter to double-check connections before powering on.
Conclusion: Save Money and Keep Your Setup Retro-Ready
Repairing RGC SCART cables may seem intimidating, but with the right approach, it’s a safe, budget-friendly, and rewarding process. Whether you’re troubleshooting signal loss or replacing a damaged connector, learning to fix your own cables can extend the life of your retro gaming gear.
With just a few tools and some patience, you can restore your SCART cables to full functionality—and enjoy pixel-perfect gameplay for years to come.
